Fiber agitator
Posted: Fri May 25, 2018 12:44 pm
by Andrew Smith
I have constructed a kitchen table prototype of the fiber agitator described in this paper
https://arxiv.org/pdf/1802.01642.pdf.
This link shows it in action while testing. It will have a cover to stop my Burmese cat playing with it!
https://www.dropbox.com/s/o0axnsb9o5gt3 ... e.mp4?dl=0
Regards Andrew
Re: Fiber agitator
Posted: Sat May 26, 2018 7:14 am
by Olivier GARDE
Hi Andrew,
I work on a similar project with a prototype in LEGO like this one you can find in this link page 27 :
http://www.not.iac.es/news/reports/annu ... nRep10.pdf
My prototype (in progress) will have 2 modules:
- One to shake the fiber in the X axis
- One to shake the fiber in the Y axis
Both not having the same speed.
Re: Fiber agitator
Posted: Sat May 26, 2018 9:25 am
by Andrew Smith
Hi Olivier, I looked at this design. Are you to using LEGO or just the principles of the design? I liked the fact they had to return the LEGO!
I will post some results when I get them and I look forward to seeing yours.
Regards Andrew
Re: Fiber agitator
Posted: Sat May 26, 2018 1:04 pm
by Andrew Smith
Here are some results with my Hi Res Spectrograph R ~2300 using tungsten flats. These images have a strong contrast stretch to highlight the difference.
I will be putting the new agitator into production.

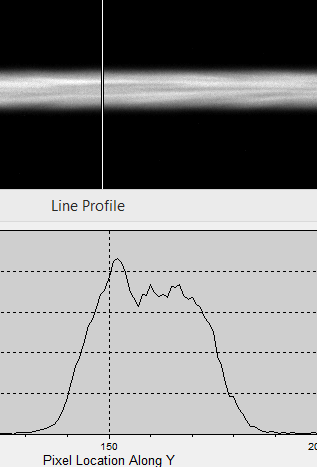

- No agitation
- New agitator_off.png (15.08 KiB) Viewed 3971 times

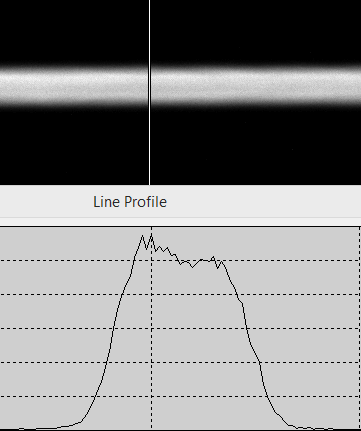

- Agitation
- New agitator_on.png (15.97 KiB) Viewed 3971 times
Regards Andrew
Re: Fiber agitator
Posted: Sat May 26, 2018 4:13 pm
by Olivier GARDE
Andrew Smith wrote:Hi Olivier, I looked at this design. Are you to using LEGO or just the principles of the design? I liked the fact they had to return the LEGO!
I will post some results when I get them and I look forward to seeing yours.
Regards Andrew
Yes with LEGO too, (only for the prototype...)
