Lowspec3 additions

[Tony Rodda]

Just a quickie to show the most recent incarnation.

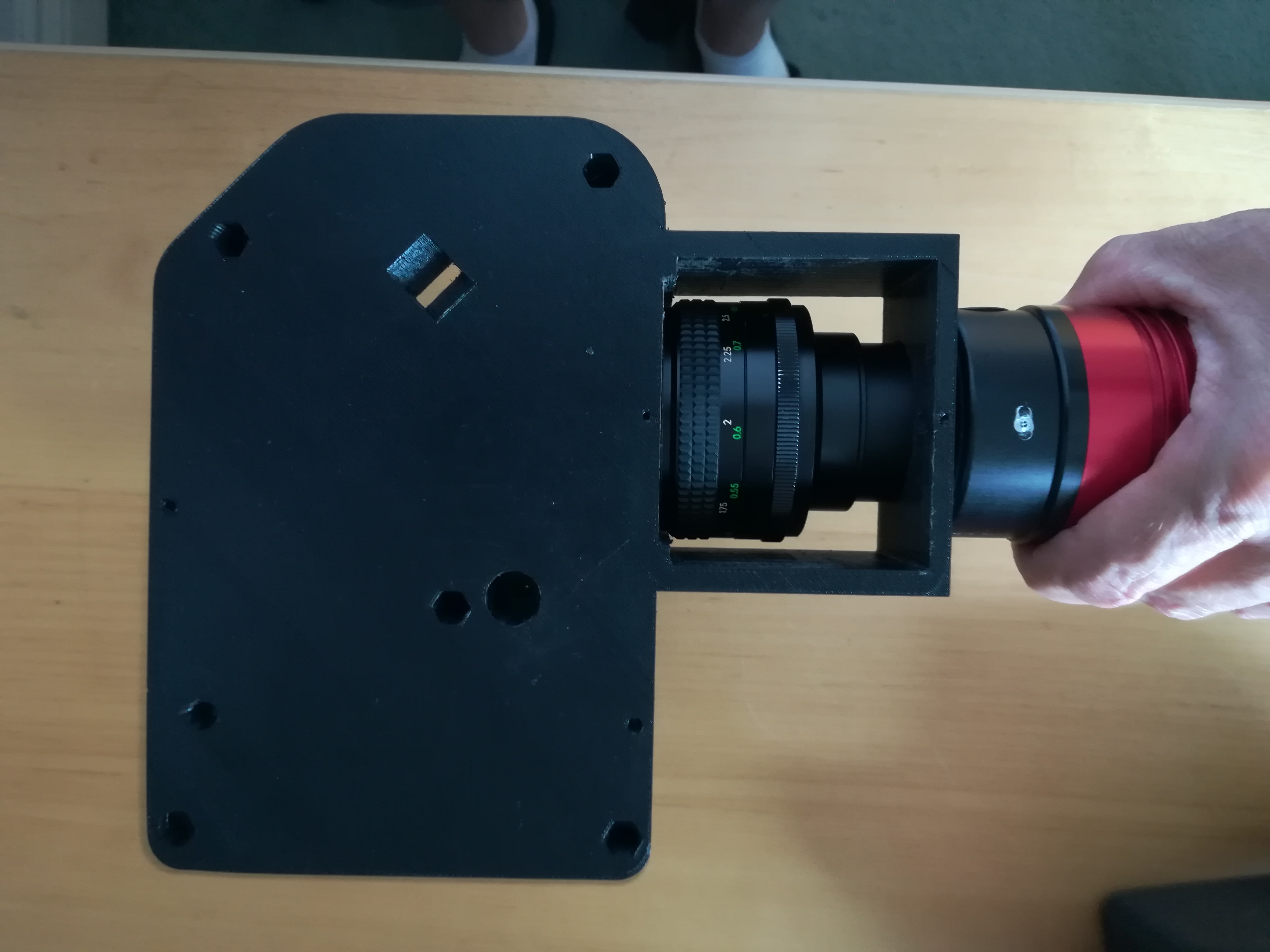

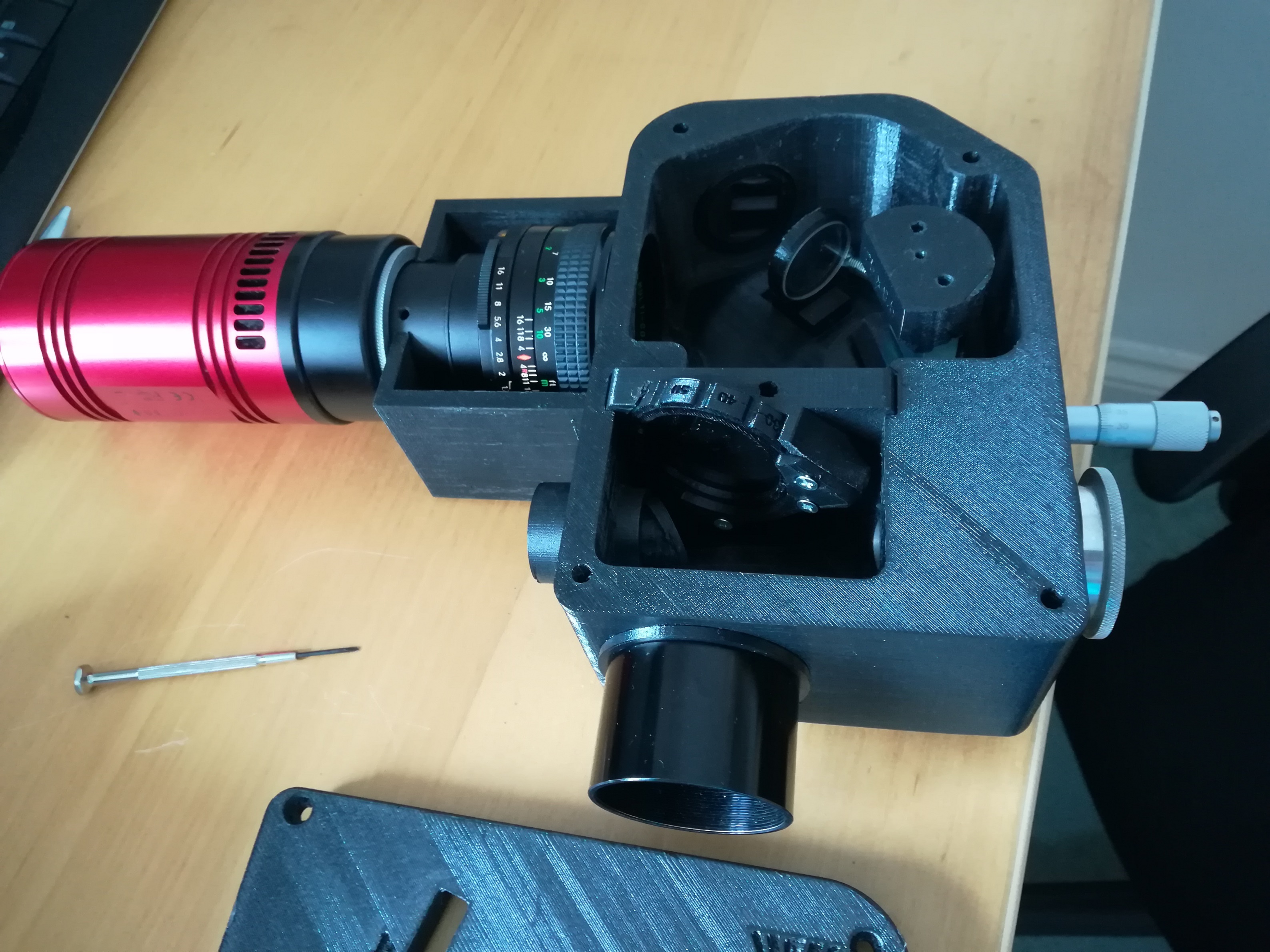

A commercial 55mm lens in place of the 'standard' 30mm diameter doublet. (Upper and lower covers removed for clarity).

Much better end-to-end focusing across the visible range. This looks to be a marked improvement.

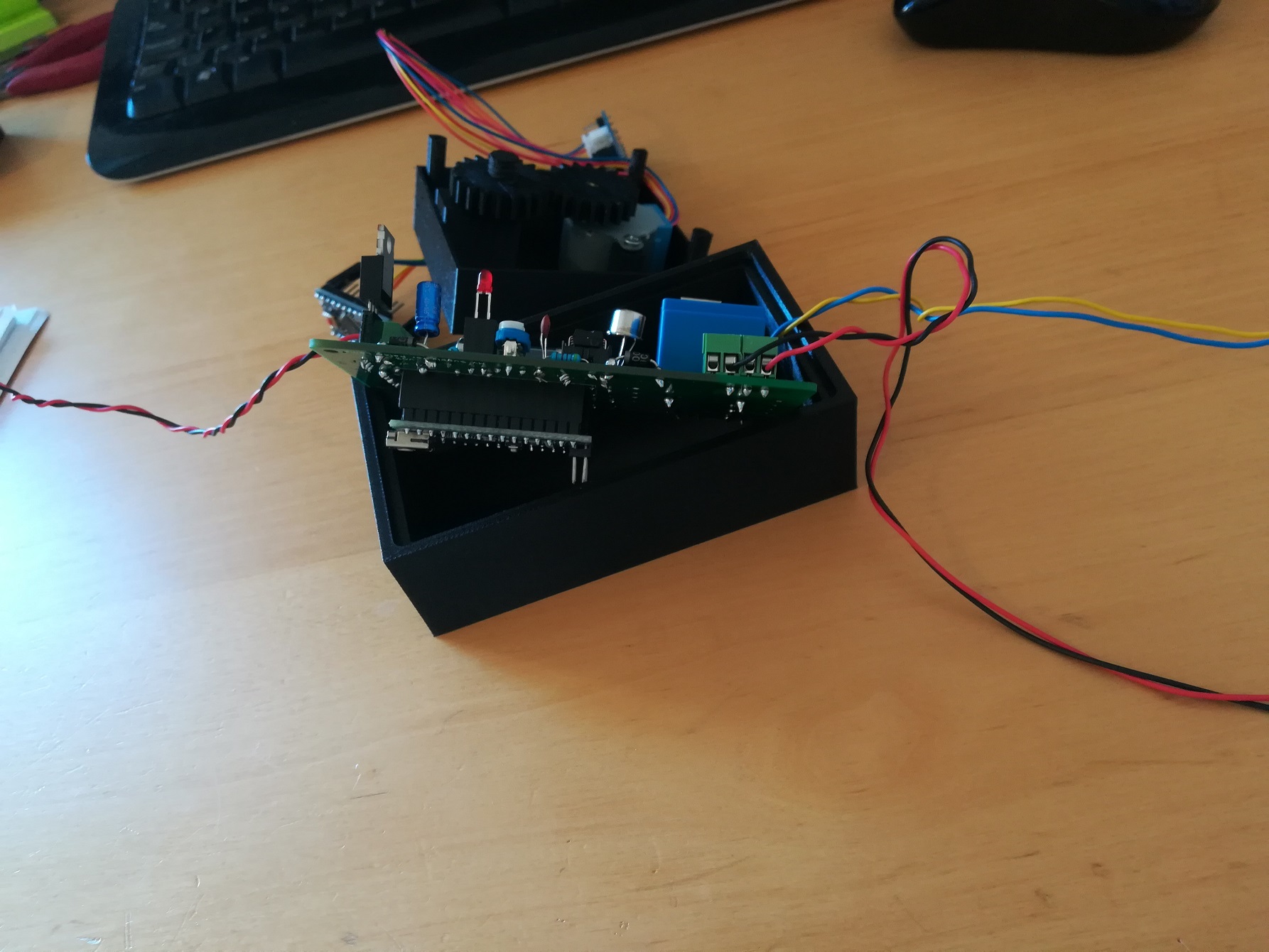

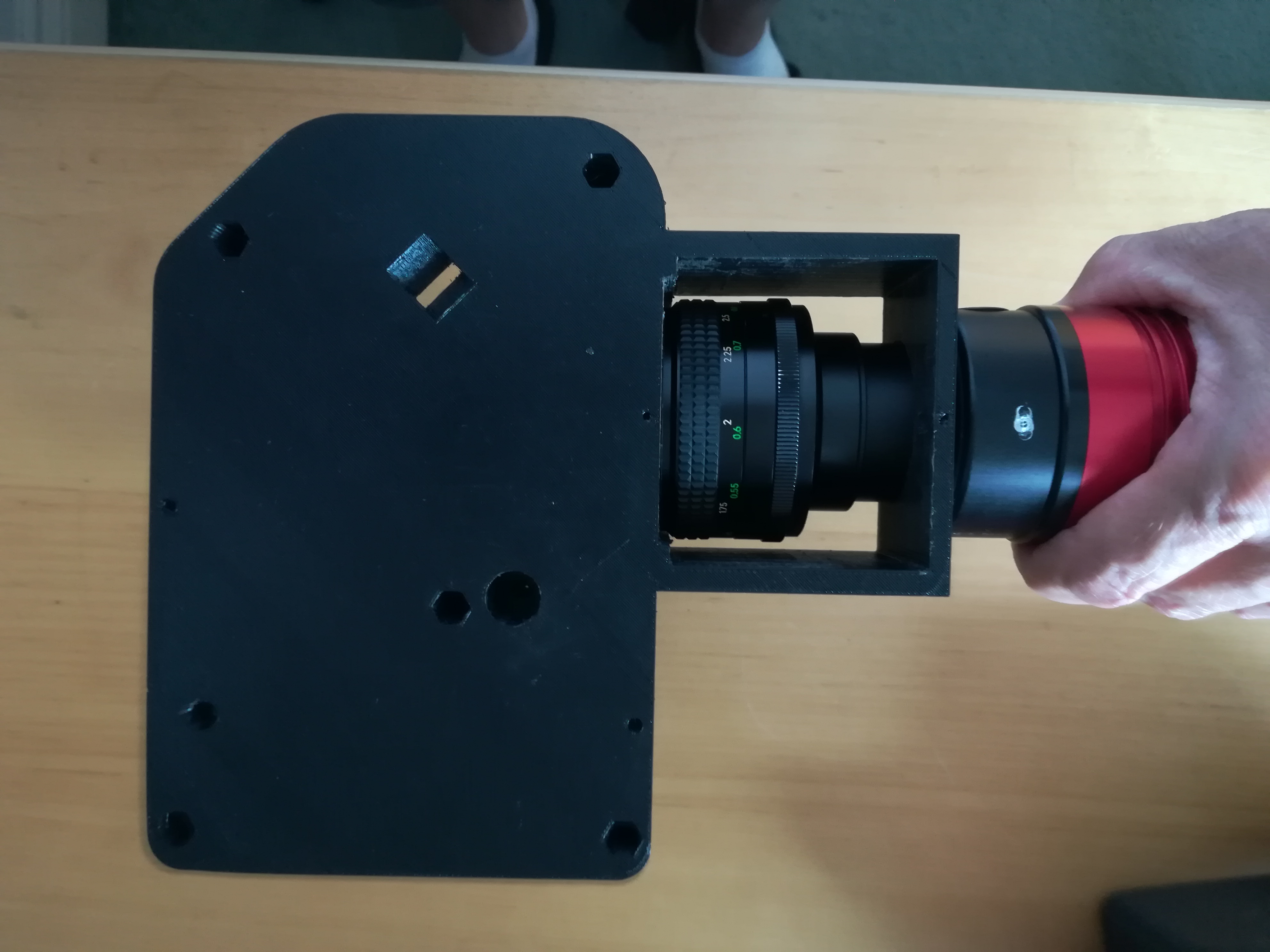

Look how much space it frees up inside the body of the spectrograph and underneath the body for additional automation fixtures. The new SAS developed calibration 'injector' & lamp controls, focusers, grating motor, etc can now be added.

Regards

Tony

[Joan Guarro Flo]

Hi Tony,
Congratulations for your spectrograph, the bridge or box for the Nikon and the ATIK CCD it is similar than I use in the NOU_T echelle.

Have you tested this instrument ? Can you show us some results, if you want ?

Be able to you more specific about it design and optical parts, please ? Many thanks.

Cheers, Joan.
