Symbiotic recurrent nova RS Oph in ourburst !!!
-
- Posts: 1249
- Joined: Thu Sep 29, 2011 6:35 am
- Location: Rhône Alpes FRANCE
- Contact:
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
Last night, I have try to use a high resolution spectrograph (R=30000) on RS Oph.
This is the whoppshel spectrograph :
https://www.shelyak.com/produit/whoppshel/?lang=en
I have a small telescope of 400mm in diameter, so not realy the good size for this echelle resolution (and many clouds during observations) but I can have a wavelength range from 4000 to 7200Å
Here’s some graphs around H alpha and H Beta
This is the whoppshel spectrograph :
https://www.shelyak.com/produit/whoppshel/?lang=en
I have a small telescope of 400mm in diameter, so not realy the good size for this echelle resolution (and many clouds during observations) but I can have a wavelength range from 4000 to 7200Å
Here’s some graphs around H alpha and H Beta
LHIRES III #5, LISA, e-Shel, C14, RC400 Astrosib, AP1600
http://o.garde.free.fr/astro/Spectro1/Bienvenue.html
http://o.garde.free.fr/astro/Spectro1/Bienvenue.html
-
- Posts: 626
- Joined: Thu Nov 03, 2011 8:50 pm
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
Hello,
Those are some graphics from Piera, with a SC16 + NOU_T echelle + ASI2600MM camera.
Regards, J.Guarro.
Those are some graphics from Piera, with a SC16 + NOU_T echelle + ASI2600MM camera.
Regards, J.Guarro.
- Attachments
-
- RSOPH1.jpg (89.7 KiB) Viewed 61989 times
-
- RSOPH2.jpg (87.14 KiB) Viewed 61989 times
-
- RSOPH3.jpg (86.09 KiB) Viewed 61989 times
-
- Posts: 40
- Joined: Fri Mar 04, 2016 3:52 pm
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
]hello,
a quick comparison between 09/08 and 10/08 low-res spectra of RS Oph, to be continued !
vincent
a quick comparison between 09/08 and 10/08 low-res spectra of RS Oph, to be continued !
vincent
-
- Posts: 1431
- Joined: Mon Sep 26, 2011 6:59 pm
- Contact:
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
StarEx spectra of RS Oph for the 10-11 August from Antibes. StarEx is the stellar version of the low cost SolEx instrument dedicated to the solar observation (a 3D printing setup !).
The spectrograph is on a 200-mm Newton telescope working at f/5.
The Halpha region at R=1700 (600 lines/mm grating version) :
The UV region at R=1350 (by rotating the grating knob):
The reasonable UV limit wavelength is here 3640 A.
We can note that StarEx is capable of fine astrophysics despite a low cost. Some examples for same spectral region, Vega:
Deneb:
gamma Cyg:
StarEx during session test at OHP observatory last week:
Christian Buil
(SolEx project: http://www.astrosurf.com/solex/)
The spectrograph is on a 200-mm Newton telescope working at f/5.
The Halpha region at R=1700 (600 lines/mm grating version) :
The UV region at R=1350 (by rotating the grating knob):
The reasonable UV limit wavelength is here 3640 A.
We can note that StarEx is capable of fine astrophysics despite a low cost. Some examples for same spectral region, Vega:
Deneb:
gamma Cyg:
StarEx during session test at OHP observatory last week:
Christian Buil
(SolEx project: http://www.astrosurf.com/solex/)
-
- Posts: 20
- Joined: Fri Jan 19, 2018 10:53 am
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
My attempt last night (10th) using my C9.25 and Lhires III with 23m slit riding on a CEM60,captured 9x60sec images. I chose Vega as reference star,and RS Oph profile normalized at wavelength 6498 to 6503. Used ISIS to carry out calibration and Vspec to create chart.
Alun Halsey
Alun Halsey
LHires III + SX Trius pro 694,ALPY 600 + SX Trius pro 825,Star analyser 100,C9.25,Esprit 150 ED Apo, Evostar 72ED with Sol'Ex SHG. Mesu 200 Mk1
-
- Posts: 191
- Joined: Thu Sep 29, 2011 7:40 am
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
Hi All
This is my effort from last night.

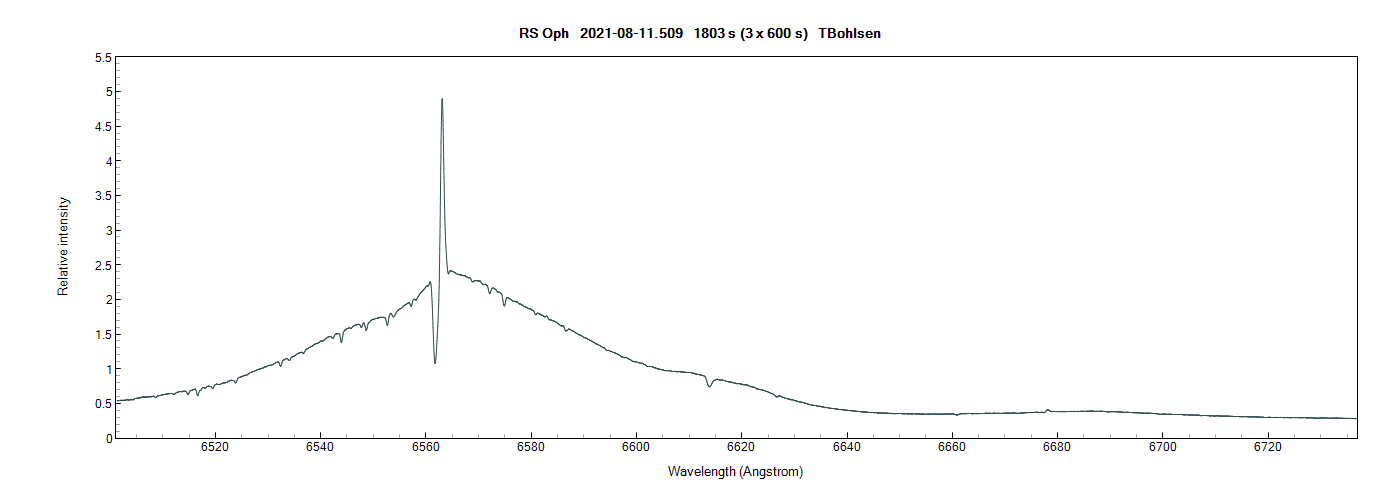

I used my LOSPEC at R=~4700 and my LHIRES R=16000.
Interesting to see the difference that the resolution makes.
Terry
This is my effort from last night.
I used my LOSPEC at R=~4700 and my LHIRES R=16000.
Interesting to see the difference that the resolution makes.
Terry
Terry Bohlsen
Armidale NSW
Australia
Armidale NSW
Australia
-
- Posts: 40
- Joined: Fri Mar 04, 2016 3:52 pm
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
last night, good night, and now bad weather is coming back
so here is a low res comparison between 09 and 11 august, 4 spectra by night (1/hour):
vincent
so here is a low res comparison between 09 and 11 august, 4 spectra by night (1/hour):
vincent
-
- Posts: 439
- Joined: Sun Jan 24, 2016 7:14 am
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
I had my LhiresIII in "CaK-mode" so I shot RS Oph in this region on 09-Aug-2021:
After this date, I changed to "Ha-mode" for spectra on 10 & 11 Aug21:
10Aug21:
11Aug21(Out of 22 only 9 were worth processing because of cloudy skies):
We seem to be having a good run on exploding stars! (NOTE: Most CaK lines identified are tentative)
Any thought appreciated........
James
After this date, I changed to "Ha-mode" for spectra on 10 & 11 Aug21:
10Aug21:
11Aug21(Out of 22 only 9 were worth processing because of cloudy skies):
We seem to be having a good run on exploding stars! (NOTE: Most CaK lines identified are tentative)
Any thought appreciated........
James
James Foster
eShel2-Zwo ASI6200MM Pro
Lhires III (2400/1800/600 ln/mm Grat) Spectroscope
LISA IR/Visual Spectroscope (IR Configured)
Alpy 200/600 with Guide/Calibration modules and Photometric slit
Star Analyzer 200
eShel2-Zwo ASI6200MM Pro
Lhires III (2400/1800/600 ln/mm Grat) Spectroscope
LISA IR/Visual Spectroscope (IR Configured)
Alpy 200/600 with Guide/Calibration modules and Photometric slit
Star Analyzer 200
-
- Posts: 578
- Joined: Thu Sep 29, 2011 10:51 pm
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
Hi all,
great spectra! Joan, your profiles are *top level*!
Significant changes of neutral oxygen line in two days:
Have a nice observations!
Paolo
great spectra! Joan, your profiles are *top level*!
Significant changes of neutral oxygen line in two days:
Have a nice observations!
Paolo
-
- Posts: 1249
- Joined: Thu Sep 29, 2011 6:35 am
- Location: Rhône Alpes FRANCE
- Contact:
Re: Symbiotic recurrent nova RS Oph in ourburst !!!
My spectrum of the last night taken with a whoppshel R=30000.
And the evolution during last 3 days (one spectrum per day)
And the raise of Iron lines
All spectra are corrected from heliocentric velocity.
And the evolution during last 3 days (one spectrum per day)
And the raise of Iron lines
All spectra are corrected from heliocentric velocity.
LHIRES III #5, LISA, e-Shel, C14, RC400 Astrosib, AP1600
http://o.garde.free.fr/astro/Spectro1/Bienvenue.html
http://o.garde.free.fr/astro/Spectro1/Bienvenue.html
