Linx, a Low-Resolution Spectrograph Project

[Joan Guarro Flo]

Hello,

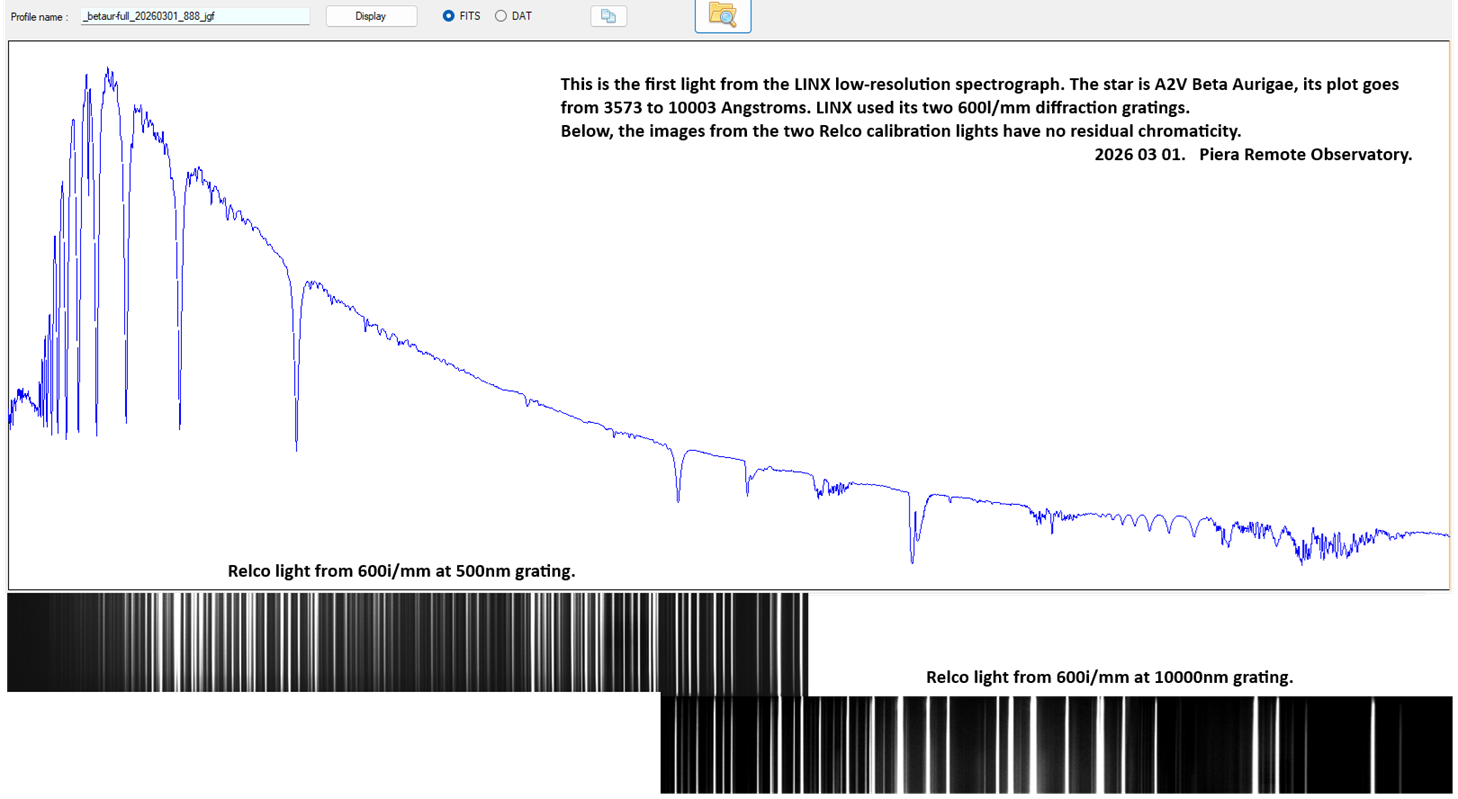

Finally, I can show you the LINX first light. I hope to show you more of them in a few weeks.

I hope you like it.

Regards. J.Guarro.

[Joan Guarro Flo]

Hello,

You can see some more LINX results here.

The next step is to try to know what the LINX edge is with a 16-inch SC telescope.

Regards, J.Guarro.

[Joan Guarro Flo]

Hello,

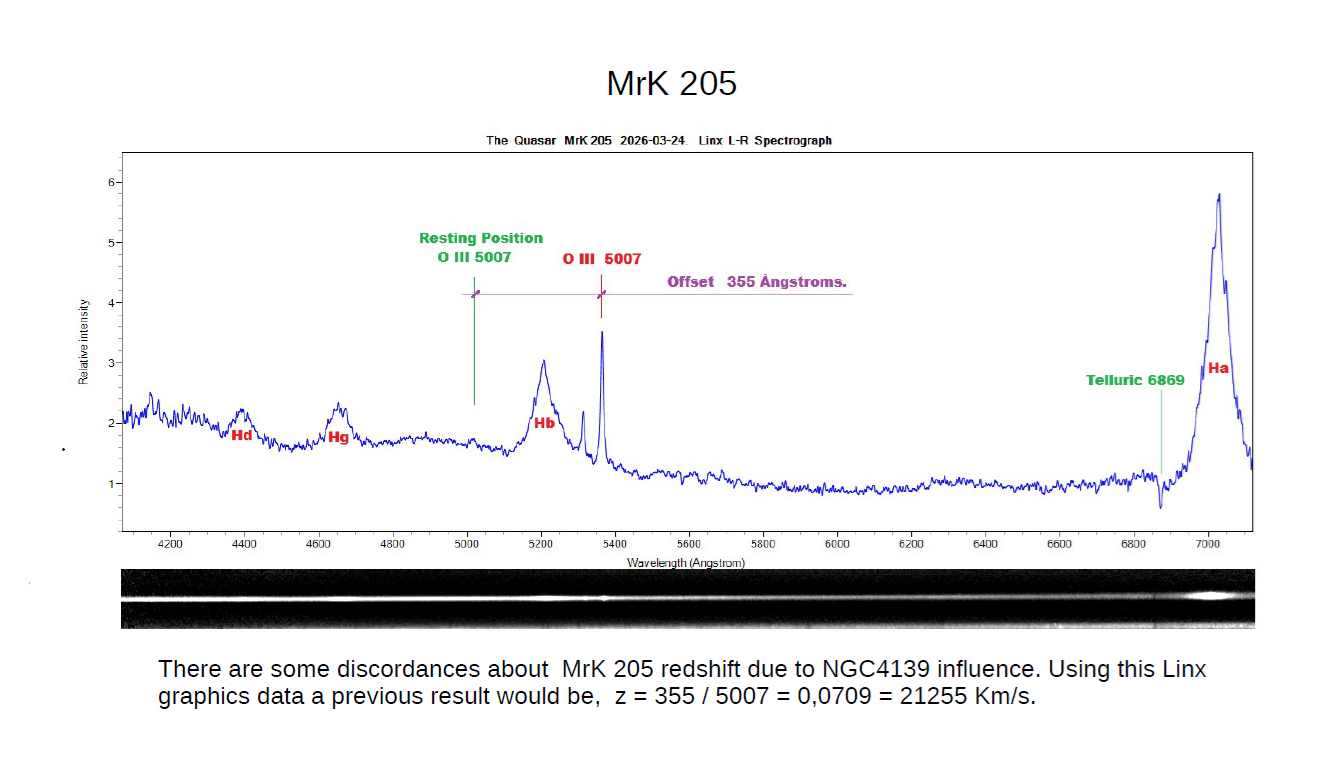

You can see here two new results of the LINX Low-Relolution Spectroscope.

I hope you like it.

Cheers, J. Guarro.

[Joan Guarro Flo]

Hello,

the Linx low-resolution spectrograph gives very good results, I want to show you this example.

Cheers, J.Guarro.

[Kay Cross]

Hello,

the Linx low-resolution spectrograph gives very good results, I want to show you this example.

Cheers, J.Guarro.

Hi, I’m interested in making one of these for myself. I’ve found a lot of the documentation for the NOU_T, which it looks like this shares components with. Are you willing to provide a component list, and the thing I’ve been having the hardest time finding, dimensions of the enclosure. Thanks!

[Francois Teyssier]

Trial by Admin

[Joan Guarro Flo]

Merci François ! The password problem has been resolved.

Hi Kay,

Do you have any previous experience making spectrographs? Of course, I could provide you with the list of the optical components for the Linx,
and then?
You need to make a 4mm diameter hole inclined 22º in the center of a flat mirror 25.4mm x 25.4mm x 6mm. Can you do it?

Could you be more specific, please?

Waiting for your answer.

Joan.
